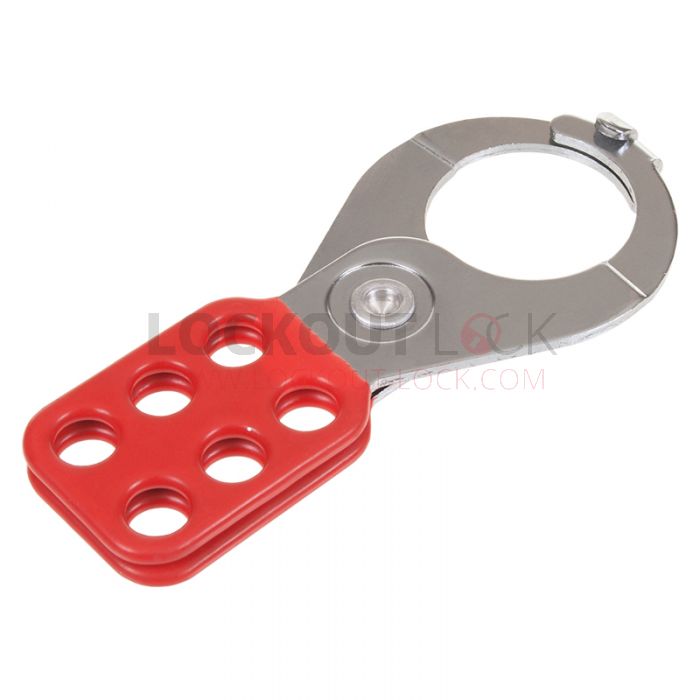

Double Locking Vinyl Coated Padlock Hasp
This hasp is constructed from high tensile steel and coated with vinyl.
It also has double locking jaws, which can be taken apart and brought together around an energy source for increased flexibility and grip. Once applied, the hasp will hold an energy source in an off position before up to six padlocks can be added to the devices’ vinyl section for extra security.
With the hasp and padlocks applied, energy sources will be effectively locked out and it isn’t possible to activate it until the devices are removed at the end of the LOTO procedure.
The hasp is also rust-resistant and can accept padlocks with a shackle diameter of up to 9mm.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 129mm |
| B - Shackle Length | 76mm |
| C - Hasp Length | 53mm |
| D - Hasp Width | 38mm |
| E - Hole Width X Height | 10mm x 10mm |
| F - Overall Width | 59mm |
| G - Inner Lock |
37mm |
| H - Top of Shackle |
7mm |
| I- Hasp Thickness | 7mm |
| J - Lock Width/Depth | 4mm |
| K - Number of Holes | 6 |
| SKU | LT-VCH-P-DL |
|---|---|
| Manufacturer Part Code | ES-VCH-P-DL |
