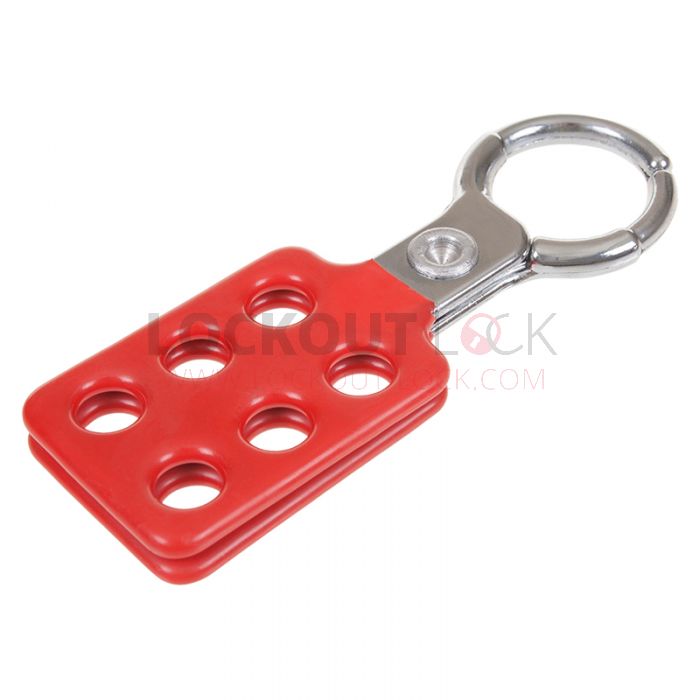

Made from high quality aluminium across the looped shackle with a high quality protective sheen on the handle, this hasp is universally suitable for any lockout measurement point.
When attached, this hasp allows up to six individual lockout padlocks to be secured to the lockout point, preventing removal while essential maintenance is ongoing.
The diameter of the hasp's loop is 25mm and clips apart for easy attachment to the lockout area.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
Parameter | Measurements |
A - Overall Height | 112mm |
B - Shackle Length | 55mm |
C - Hasp Length | 57mm |
D - Hasp Width | 38mm |
E - Hole Width X Height | 10mm x 10mm |
F - Overall Width | 35mm |
G - Inner Lock |
27mm |
H - Top of Shackle |
5mm |
I- Hasp Thickness | 7mm |
J - Lock Width/Depth | 5mm |
K - Number of Holes | 6 |
0 Reviews
Overall Rating
Additional Information
SKU | LT-ALH-25 |
---|---|
Manufacturer Part Code | ES-ALH-25 |
