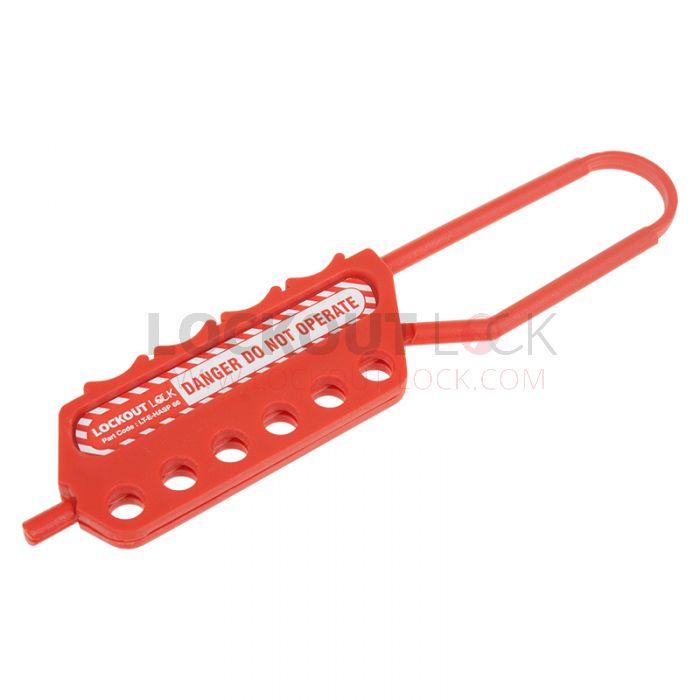

Insulated Nylon Hasp - 6 Holes, 6mm Thickness, 80mm Clearance
This flexible hasp allows you to effectively lock out larger electrical applications. The device has 80mm clearance, shackle thickness of 6mm and 6 separate holes which can accommodate individual lockout padlocks.
As this device is made of flexible nylon, this allows the user to bend the lockout hasp into shape around the isolation point. It also means that the material of the device does not conduct electricity, making this suitable for use on things such as electrical boxes and miniature circuit breakers.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 193mm |
| B - Shackle Length | 92mm |
| C - Hasp Length | 101mm |
| D - Hasp Width | 42mm |
| E - Hole Width X Height | 10mm x 10mm |
| F - Overall Width | 31mm |
| G - Inner Lock |
24mm |
| H - Top of Shackle |
4mm |
| I- Hasp Thickness | 9mm |
| J - Lock Width/Depth | 6mm |
| K - Number of Holes | 6 |
