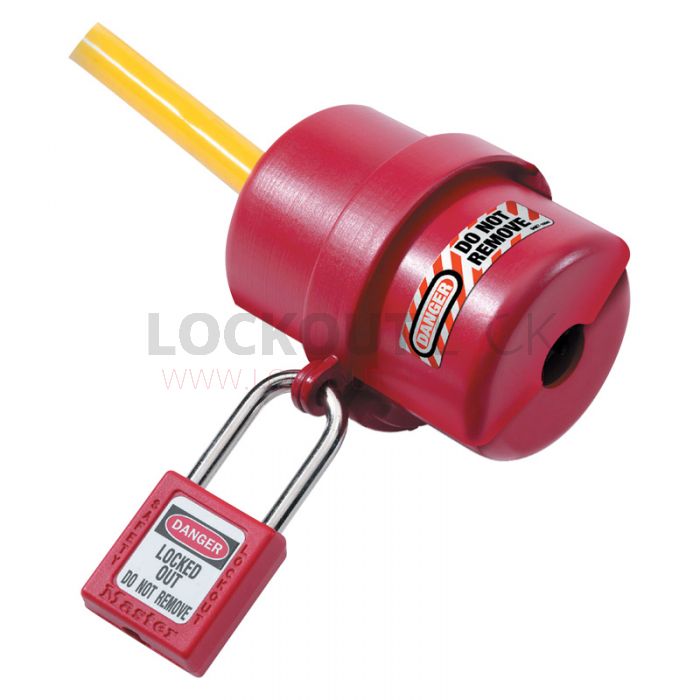

This plug lockout is available in two variations. Model 487 can be used with 120 to 240V plugs while model 488 is suitable for 240 to 550V plugs.
These lockouts completely surround electrical plugs, preventing the plug from being inserted into a socket.
Made from Masterlock's heavy-duty Zenex, the plug lockouts are made to withstand extreme temperatures and are protected against chemical damage.
This video shows how the lockouts are installed.
Key Features
- Completely surrounds electrical plugs to prevent reconnection
- Available in two types to cater for different plug voltages
- Unique, patented rotating desigh for easier installation in confined spaces
- Includes danger label
- Tough lightweight dielectric thermoplastic body
- Performs in extreme temperatures range from -50 to 350°F (177°C)
- Suitable for electrical plug sizes up to 2-1/4" diameter x 3-1/4" (5.7 x 8.2cm) with cord diameter up to 3/4" (1.9cm)
Lockout Dimensions
Model | Width | Length | Depth |
487 | 70mm | 95mm | 55mm |
488 | 90mm | 180mm | 75mm |
0 Reviews
Overall Rating
Additional Information
SKU | ML-487-488 |
---|---|
Manufacturer Part Code | 487 |
