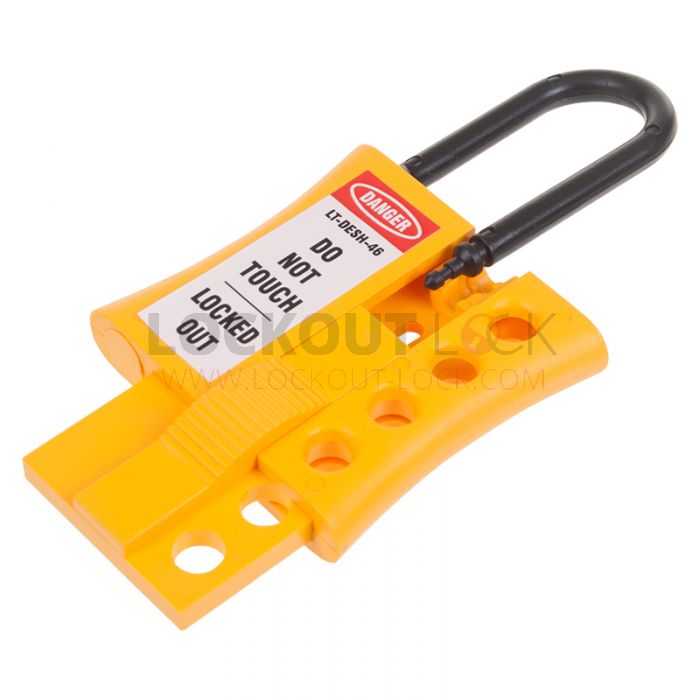

Non Conductive Tagout Slider Hasp for 4 Locks / 6 mm Shackle
Secure electrical applications such as MCBs and electrical panels in place by using these non conductive sliding hasps.
The device slides apart easily and can be secured around energy sources by using the 6mm shackle before being secured in place by up to four padlocks.
The hasps are made from highly durable nylon that doesn’t conduct electricity, and are yellow in colouring to increase visibility.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 116mm |
| B - Shackle Length | 50mm |
| C - Hasp Length | 56mm |
| D - Hasp Width | 62mm |
| E - Hole Width X Height | 10mm x 10mm |
| F - Overall Width | 30mm |
| G - Inner Lock |
20mm |
| H - Top of Shackle |
6mm |
| I- Hasp Thickness | 15mm |
| J - Lock Width/Depth | 6mm |
| K - Number of Holes | 6 |
