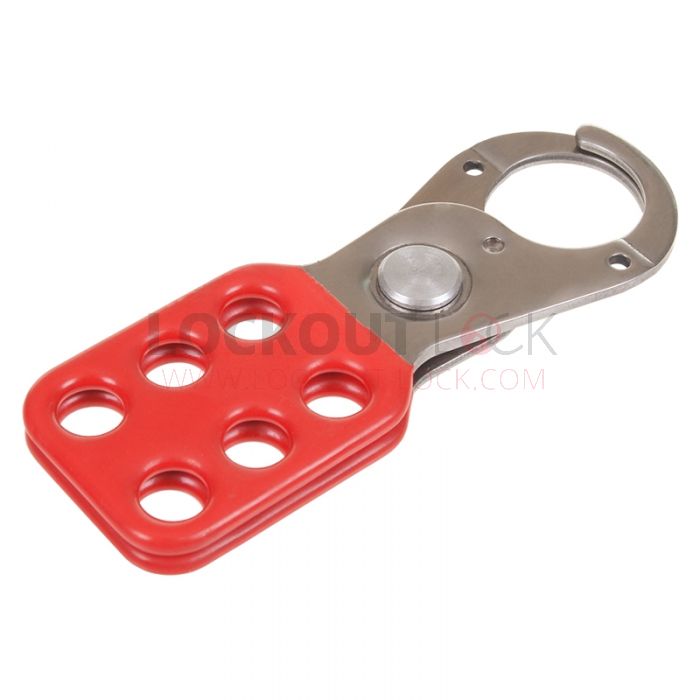

Small Rustproof Vinyl Coated Stainless Steel Hasp
These hasps are constructed from stainless steel, making them suitable for environments where a lot of stress may be placed on the hasp, or where chemicals may be introduced to the device.
The hasp is also rustproof, meaning it won’t degrade over time even when used in harsh conditions. The device itself is coated with vinyl for better grip and visibility, and the hasp contains space for up to six individual lockout padlocks.
This stainless steel device has a shackle thickness of 5mm.
HASP DIMENSIONS
The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.
| Parameter | Measurements |
| A - Overall Height | 111mm |
| B - Shackle Length | 61mm |
| C - Hasp Length | 50mm |
| D - Hasp Width | 39mm |
| E - Hole Width X Height | 10mm x 10mm |
| F - Overall Width | 42mm |
| G - Inner Lock |
19mm |
| H - Top of Shackle |
3mm |
| I- Hasp Thickness | 7mm |
| J - Lock Width/Depth | 4mm |
| K - Number of Holes | 6 |
People Also Bought
0 Reviews
Overall Rating
Additional Information
| SKU | LT-VCSSH-S |
|---|---|
| Manufacturer Part Code | ES-VCSSH-S |
