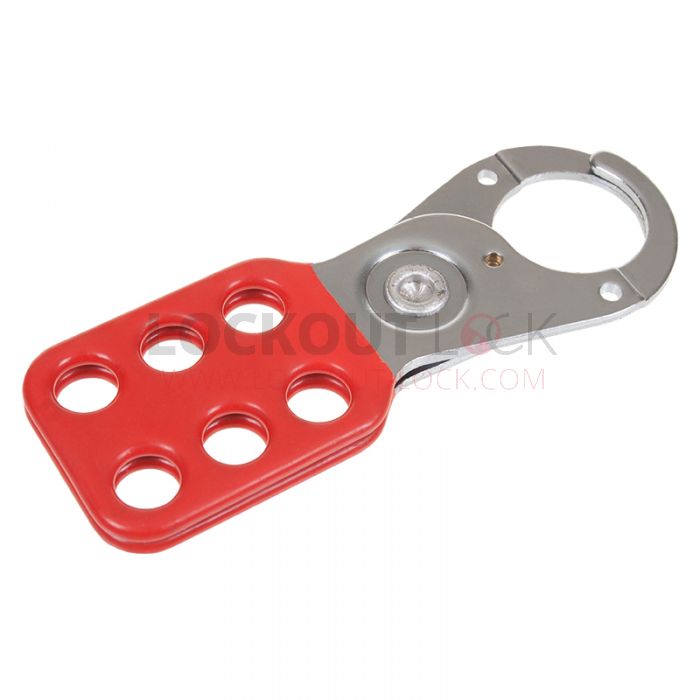

Use this small shackle lockout hasp to allow multiple padlocks to be attached to a lockout out energy source.

Easy to install, simply fit the hasp around the lockout point, clip into place, and attach as many padlocks as you need. It's good practice for every team member to have their own padlock, ensuring that only they can remove the lockout and are accounted for when the hasp is removed.

The actual loop section of this hasp is made from high quality, high tensile steel sheeting. This has been electroplated to prevent rusting, and is strong enough to resist forced removal attempts. The body of the hasp is coated in red vinyl, ensuring comfortable grip and higher visibility when installed on the lockout point.

The interior diameter of this hasp is 5mm. We also have a wide variety of other haps in other sizes available in store.

Small Red Vinyl-Coated Lockout Hasp Key Features

  • Attach multiple padlocks to the same energy source
  • Easy to install - scissor action hasp feeds easily around the lockout point
  • 5mm shackle opening (diameter)
  • Hasp constructed from high tensile steel sheets with rust-proofing
  • Vinyl-coated body in red colouring, ensuring higher visibility
  • Strong and durable - can't be removed unless all team members remove their individual padlocks
  • Ideal for any basic lockout application

Hasp Dimensions

The following table outlines the dimensions of this hasp. Use it in combination with the dimension reference image above to learn the size of each section of this product.

All sizes are approximate.

ParameterMeasurements
A - Overall Height  113mm
B - Shackle Length 62mm
C - Hasp Length 50mm
D - Hasp Width 39mm
E - Hole Width X Height 10mm x 10mm
F - Overall Width 42mm
G - Inner Lock 24mm
H - Top of Shackle 5mm
I- Hasp Thickness 8mm
J - Lock Width/Depth 3mm
K - Number of Holes 6
Part CodeES-VCH-S

Hasp Dimensions

All values are approximate.

Parameter Measurement
A - Overall Height 113mm
B - Shackle Length 62mm
C - Hasp Length 50mm
D - Hasp Width 39mm
E - Hole Width x Height 10mm x 10mm
F - Overall Width 42mm
G - Inner Lock 24mm
H - Top Of Shackle 5mm
I - Hasp Thickness 8mm
J - Lock Width/Depth 3mm
K - Number of Holes 6
